Arched T-Leg - Spring Clip Height Adjustable - Black

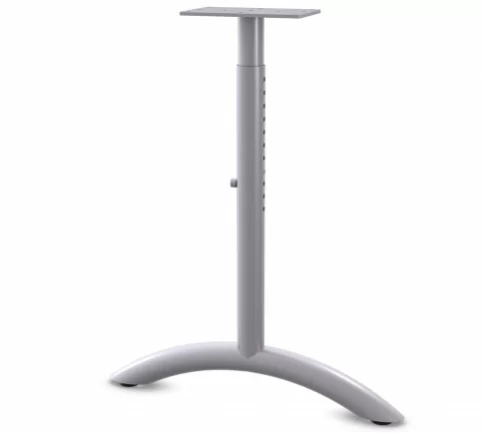

Arched T-Leg - Spring Clip Height Adjustable - Metallic Silver
Product Preview
Click & Drag Image (Left or Right)

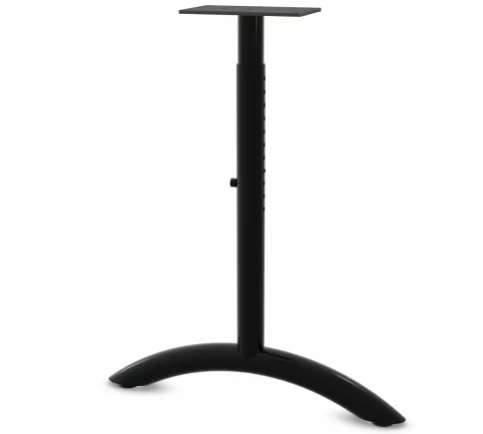

Arched T-Leg - Spring Clip Height Adjustable - Black
Special Offer

Arched AT-Leg

Spring Clip Height Adjustable

Configure Bases

 Configure Tables

Price From:

$276 List

  • Column: 2" diameter
  • Adjustment Range: 24.75" to 34.75"
  • Welded Mounting Plate: 4" x 4" x 7/32" or 5" x 8" x 7/32"
  • Leveler: 1 3/8" diameter plastic in steel threaded inserts; allows additional 1" (25.4mm) upward height adjustment for uneven floors
  • Finish: durable powder coat; black is stock color
  • 220 lbs. (100kg) vertical load rating per leg

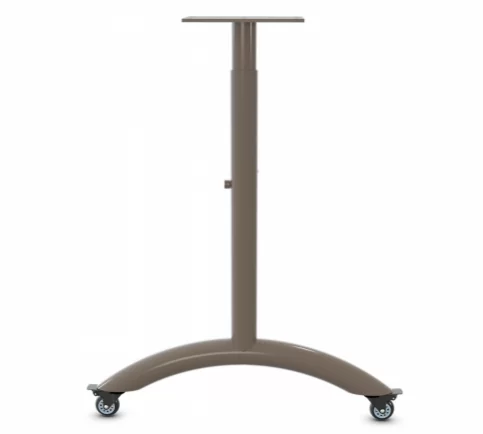

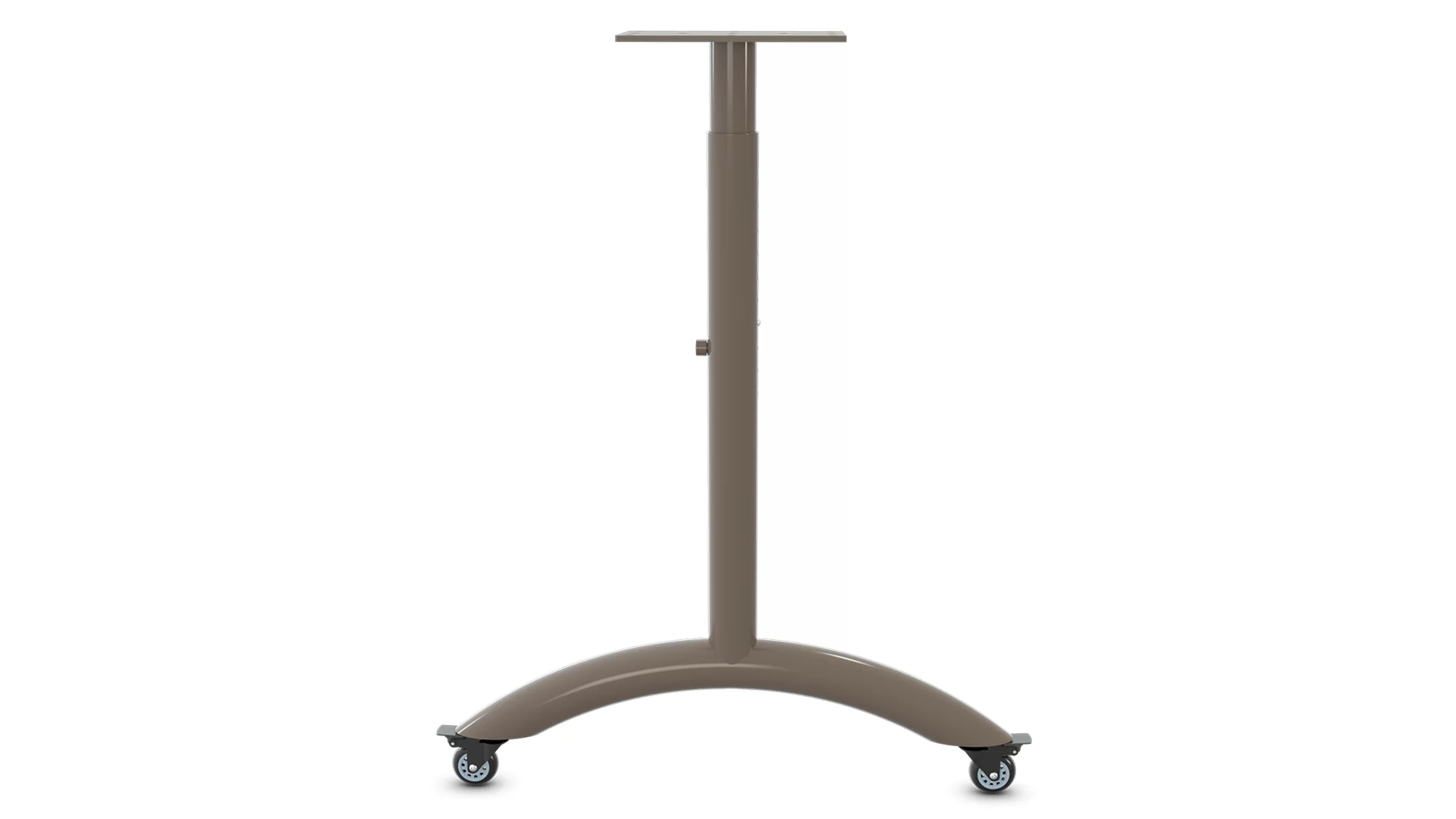

  • Casters: the height of the base will increase by 2".
Show More
Item Details
Related Products
Specifications
Shipping & Payment
Warranty & Returns
Resources & Downloads

Specifications

Column Diameter 2"
Adjustable Height adjusts in 1" increments from 24.75" to 34.75"
Welded Mounting Plate 5" x 8" x 7/32 steel; requires 14 #12 screws
Leveler 1 3/8" diameter plastic, allow additional 1" upward height adjustment for uneven floors
Finish powder coat; black is stock color
Method of Assembly Bolted construction
Maximum Load Rating 200 pounds (per leg)

Size Chart

Base SpreadColumn DiameterMounting PlateRecommended Top Size
16"2"5" x 8"18"-22"D x 24"-96"W
22"2"5" x 8"24"-28"D x 30"-96"W
26"2"5" x 8"28"-30"D x 42"-96"W

.

Resources & Downloads

Assembly Instructions
Product Preview
Click & Drag Image (Left or Right)

Arched AT-Leg 360o View
