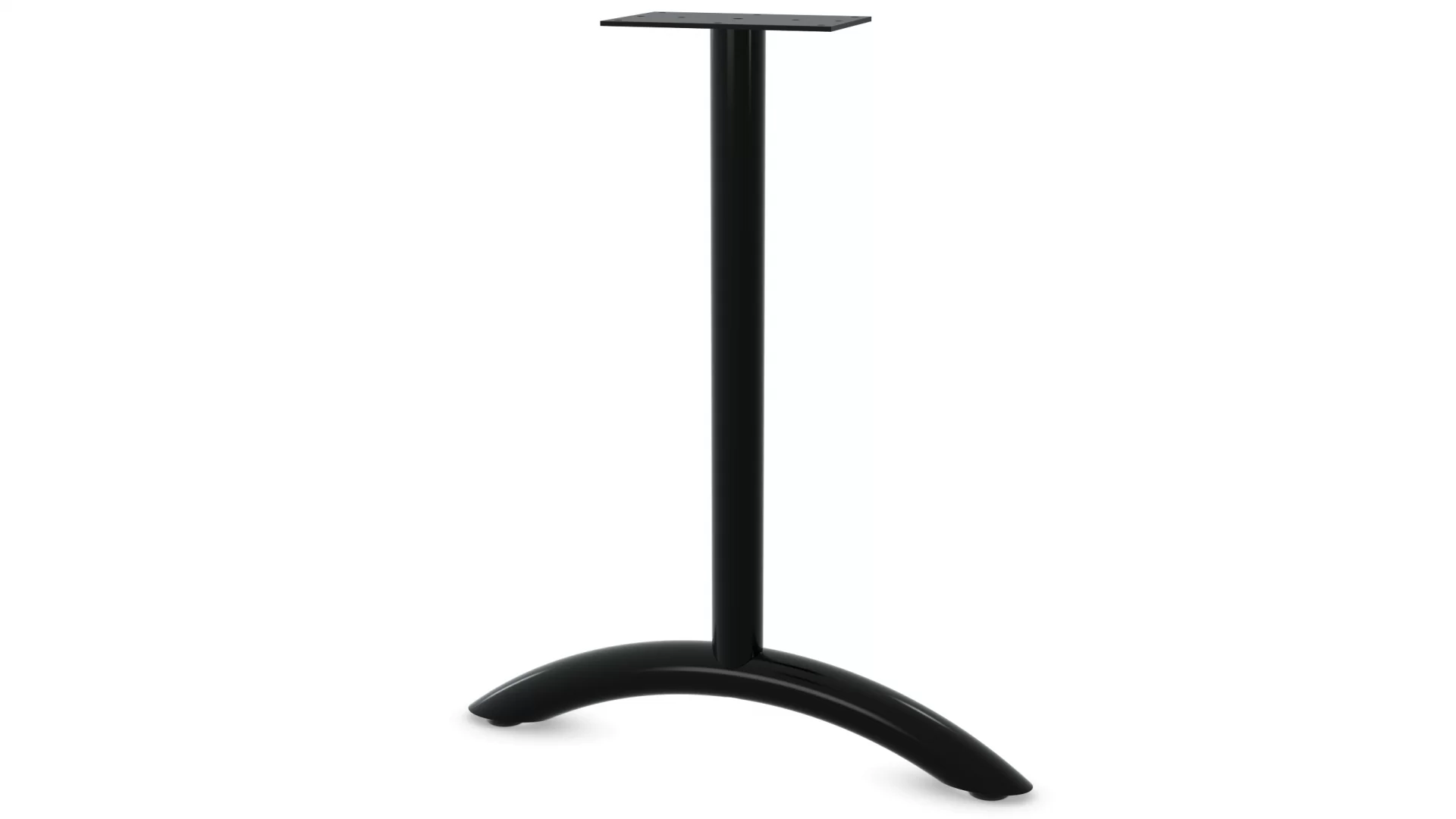

Single Column T-Leg • Arched
Arched Single Column T-Leg - Metallic Silver

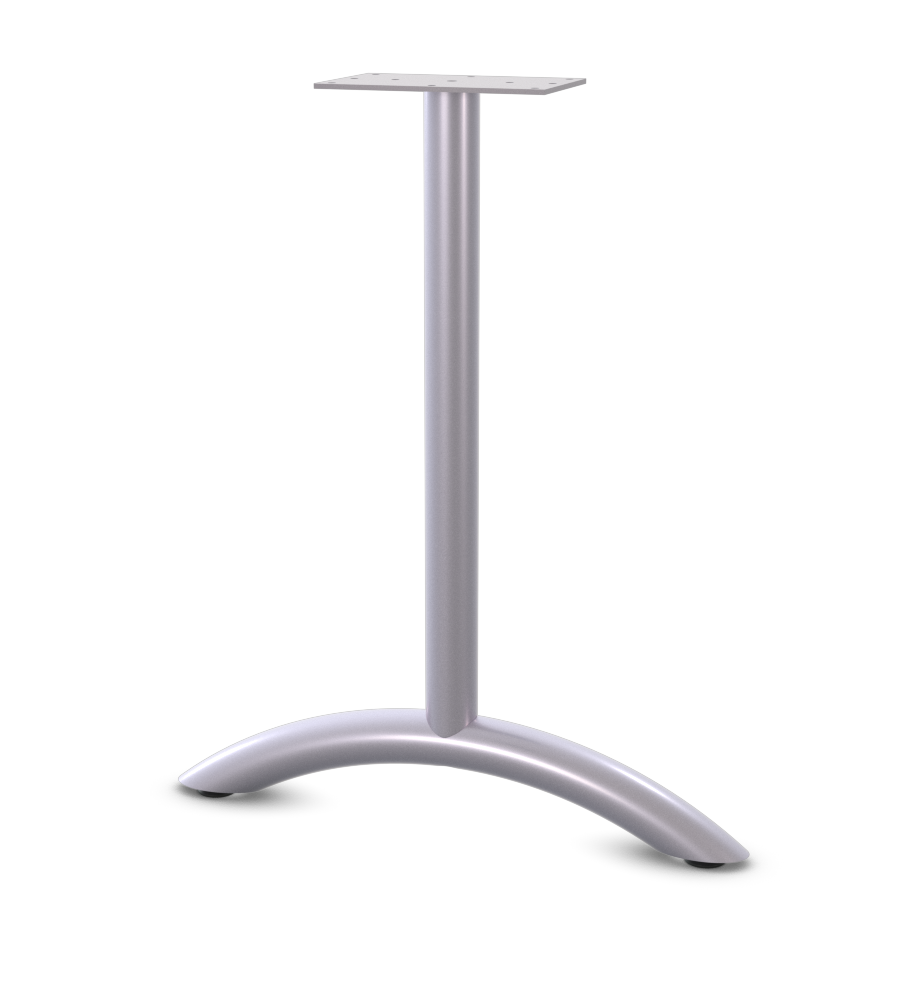

Product Preview
Click & Drag Image (Left or Right)
Single Column T-Leg • Arched
Special Offer

Single Column T-Leg

Arched

Configure Bases

 Configure Tables

Price From:

$167 List

Arched T-Leg is fabricated from the highest quality 14 gauge tubular steel. Mounting plate and all threaded inserts are welded for maximum strength.

  • Unit height: 27.75"
  • Welded Mounting Plate: 5" x 8" x 7/32" steel; require 14 #12 screws
  • Column and arched foot are 2" diameter
  • Base Spread: 16", 22", 26"
  • Leveling Glides: 1 3/8" diameter plastic in steel threaded
  • Finish: powder coat colors; Stock color is Black
  • Packaging: 2 legs per box (legs are priced individually)
Show More
Item Details
Related Products
Specifications
Shipping & Payment
Warranty & Returns
Resources & Downloads

Specifications

Unit Height 27.75"
Height Options Bar Height - 40.75", Custom Height Cut between 5" - 28.99" or between 29" - 42"
Column Diameter 2"
Arched Foot Diameter 2"
Welded Mounting Plate 5" x 8" x 7/32 steel; require 14 #12 screws
Base Spread 16", 22", 26"
Leveling Glides 1 3/8" diameter plastic in steel threaded
Finish Powder coat colors
Packaging Bases are packed 2 per box, priced individually
Options Optional Casters;

Size Chart

Base SpreadColumn DiameterMounting PlateRecommended Top Depth
16"2"5" x 8"18"-22"D x 24"-96"W
22"2"5" x 8"24"-28"D x 30"-96"W
26"2"5" x 8"28"-30"D x 42"-96"W

.



Resources & Downloads

Assembly Instructions
