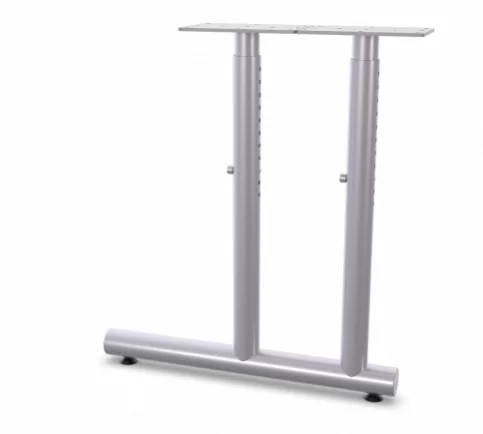

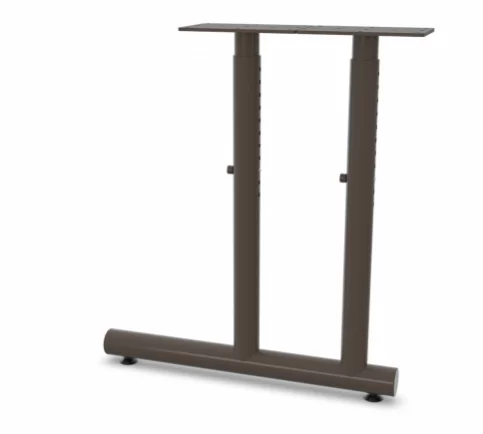

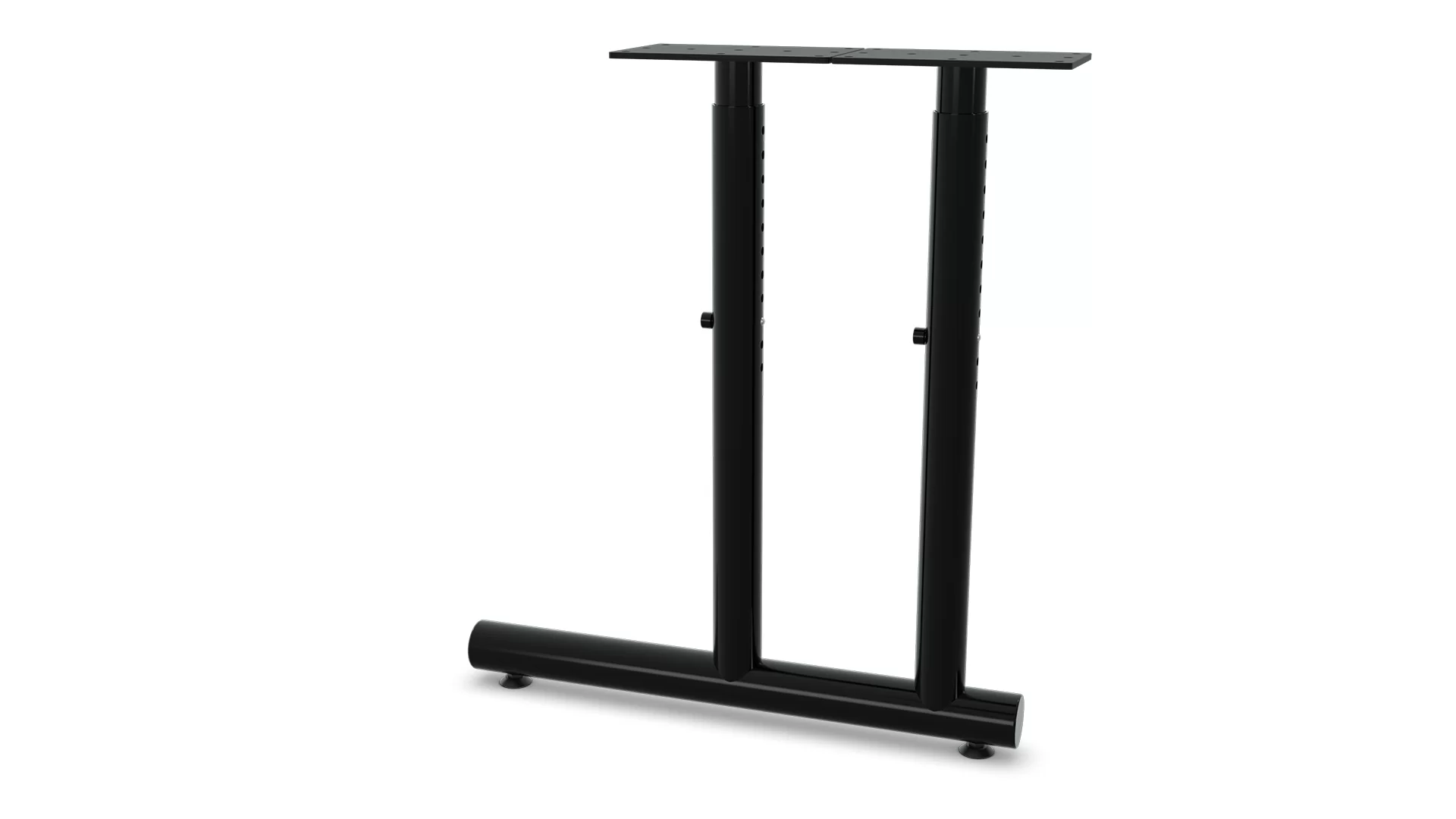

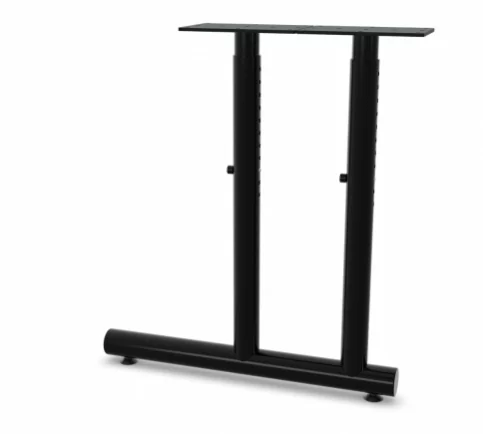

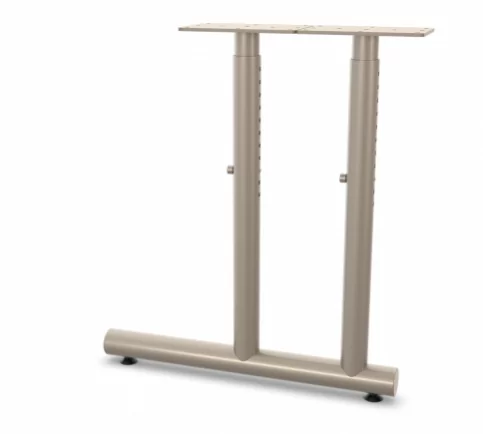

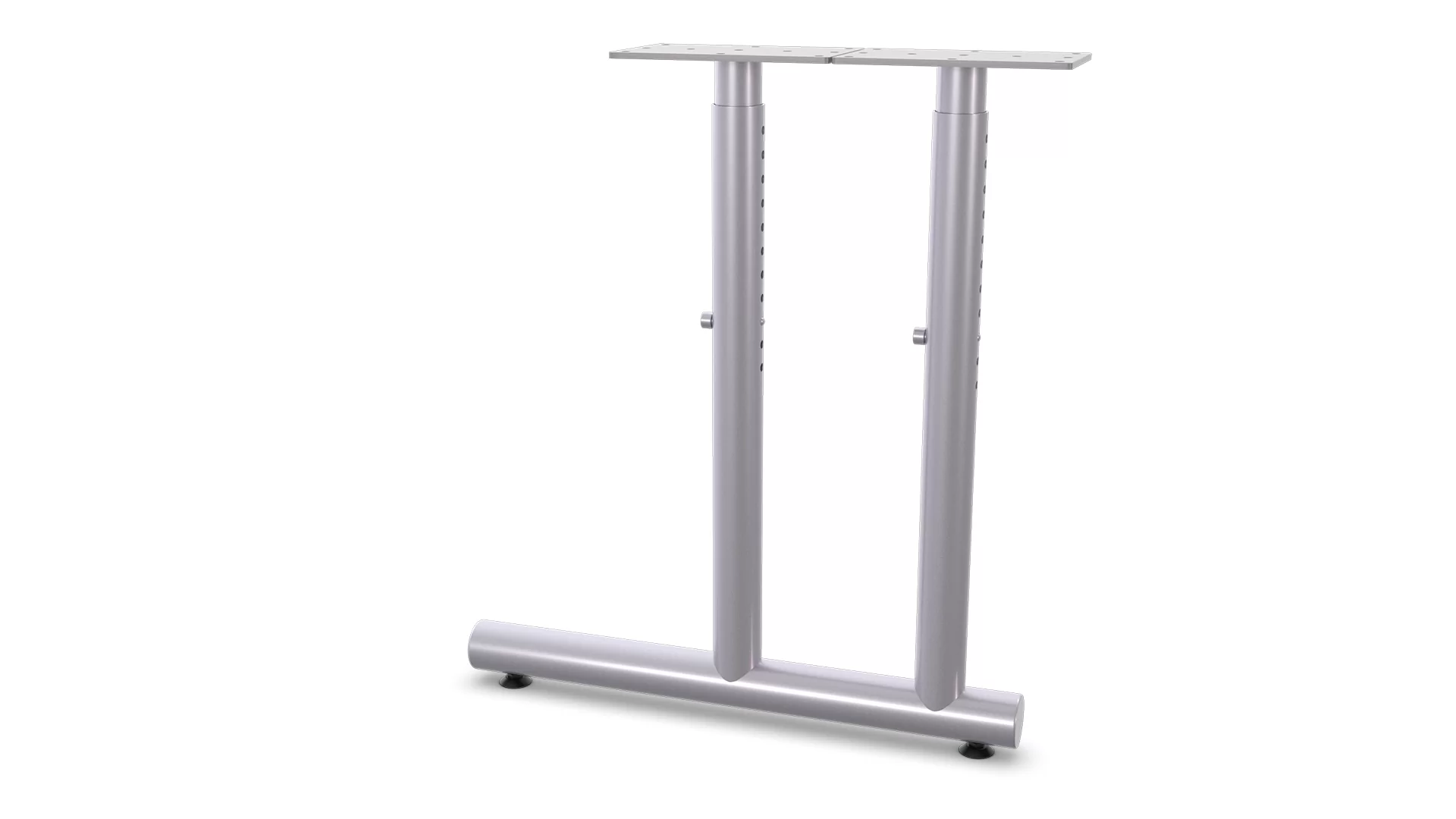

Dual Column C-leg • Spring Clip Height Adjustable
Dual Column C-leg • Spring Clip Height Adjustable
Product Preview
Click & Drag Image (Left or Right)

Dual Column C-leg

Spring Clip Height Adjustable

Configure Bases

 Configure Tables

Price From:

$487 List

Our most popular leg offers unbeatable quality and price.

  • Column: 2" diameter
  • Adjustment Range: 24.75" to 34.75"
  • Welded Mounting Plate: 5" x 8" x 7/32"
  • Leveler: 1 3/8" diameter plastic in steel threaded inserts; allows additional 1" (25.4mm) upward height adjustment for uneven floors
  • Finish: durable powder coat; black is stock color
  • 220 lbs. (100kg) vertical load rating per leg
  • Packaging: packaged 2 per box. SPYL-AH are packages 4 per box (legs are priced individually)

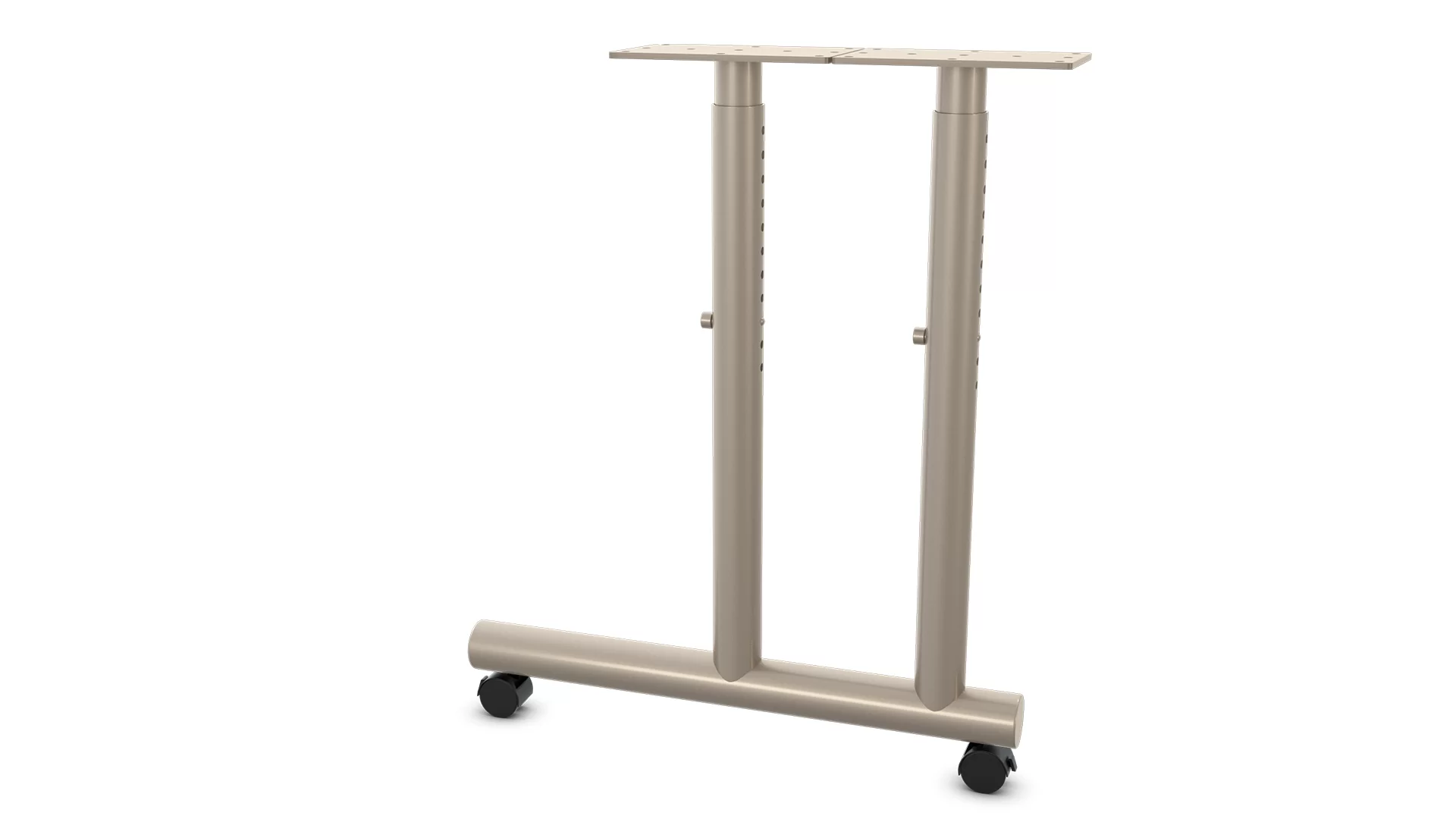

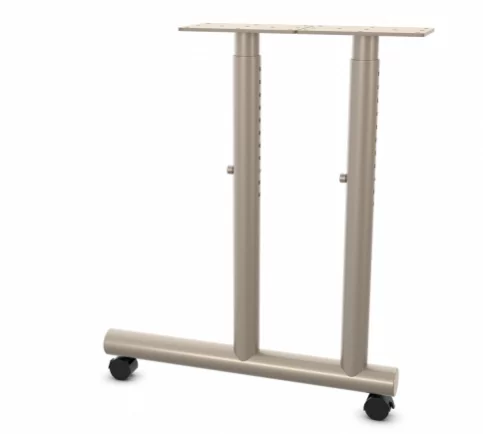

  • Casters: the height of the base will increase by 2".
Show More
Item Details
Related Products
Specifications
Shipping & Payment
Warranty & Returns
Resources & Downloads

Specifications

Adjustable Height Adjusts in 1" increments  from 24.75" to 34.75"
Column Diameter 2"
Welded Mounting Plate 5" x 8" x 7/32 steel; requires 14 #12 screws
Base Spread 22", 26", 36", 42"
Leveling Glides 1 3/8" diameter plastic, allow additional 1" upward height adjustment for uneven floors
Finish Powder coat colors; black is stock color
Method of Assembly Bolted construction
Options Optional Casters
Packaging Packaged 2 per box. (legs are priced individually)



Size Chart

Base SpreadColumn DiameterMounting PlateRecommended Top Depth
22"2"5" x 8" x 7/3218"-22"
26"2"5" x 8" x 7/3224"-28"

.



Resources & Downloads

Assembly Instructions
